B2B Student

Release Note for Summer 2022 (3.78)
Scheduled Task Queue | Pre-populate SIMS API Credentials

B2B StudentB2B Student is a module within One which enables the import of student data from schools to the Local Authorities via the Wonde API.

The following requirements need to be set up in order to use B2B Student:

• LicencesLicences

  B2B Student requires a licence to be purchased. To activate the licence, the licence key must be entered and saved in Administration | System Admin | System Administration | System Admin | Licencing.

  If the Local Authority has a current B2B Student licence the B2B Student option will be enabled in One Education Client which will allow access to all the B2B Student functionality and screens. If the Local Authority does not have a license for B2B Student or the licence key is not valid, then the B2B Student option will not be available.



  Once the licence key is entered and saved, the user should log out of One and then log in again to ensure that the licence is activated.

  Licences for B2B attainment

  In order to use the B2B attainment functionality, you must also have a Pulse licence and a B2B Attainment licence installed. B2B Attainment licences are free to customers who already have a B2B Student and Pulse licence.

• Maximum AgeMaximum Age

  Set the maximum age for incoming unmatched students

  The B2B_S_AGE parameter controls the maximum age for incoming students to be displayed in the Unmatched Student tab. Whatever age is set, any incoming students older than the defined age will not be displayed in the Unmatched Student tab. The default age is 18, meaning incoming students over 18 will not be displayed.

  To set the maximum age for incoming unmatched students:

  1. Log in to One Education Client and select Administration.
  2. Select System Admin | System Administration.
  3. Select the System Defaults tab.
  4. Scroll down and select the B2B_S_AGE parameter or search using the Filter option.
  5. In the Value field, enter the maximum age for incoming unmatched students.



• Minimum AgeMinimum Age

  Set the minimum age for a child to be considered a carer

  The Carer_Min parameter controls the minimum age a child must be in order that they can be considered for carer matching. If a child is equal to or older than the CARER_MIN age, then they can be matched, either manually or automatically, as a carer for an incoming child.

  To set the minimum age for incoming unmatched carers:

  1. Log in to One Education Client and select Administration.
  2. Select System Admin | System Administration.
  3. Select the System Defaults tab.
  4. Scroll down and select the Carer_Min parameter or search using the Filter option.
  5.  In the Value field, enter the maximum age at which a child can be considered a carer.



• B2B CacheB2B Cache

  Set the parameter to enable B2B caching

  To enable the cache for B2B Student import of data from schools, the B2BHCACHE parameter needs to be set to True.

  To set the parameter to enable the cache:

  1. Log in to One Education Client and select Administration.
  2. Select System Admin | System Administration.
  3. Select the System Defaults tab.
  4. Scroll down and select the B2BHCACHE parameter or search using the Filter option.
  5. In the Value field, enter T.



• GUID MatchingGUID Matching

  Set the parameter to enable GUID Matching

  To enable the GUID matching for B2B Student import of data from schools, the GUIDMATCH parameter needs to be set to True.

  To set the parameter to enable the cache:

  1. Log in to One Education Client and select Administration.
  2. Select System Admin | System Administration.
  3. Select the System Defaults tab.
  4. Scroll down and select the GUIDMATCH parameter or search using the Filter option.
  5. In the Value field, enter T. This is the default option.



• Scheduled Task FiltersScheduled Task Filters

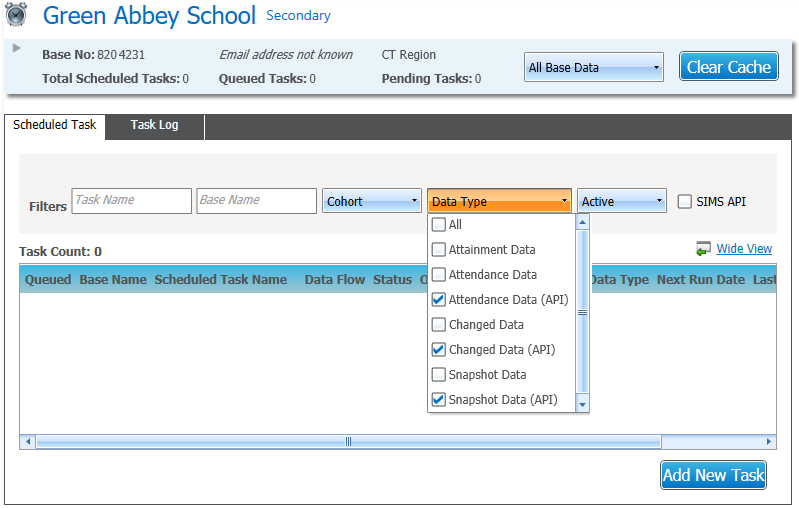

  B2B:Student | Data Transfer | Scheduled Tasks > Filters

  The Data Type dropdown in the Filters list is determined by the B2B Filter parameters in System administration | System admin | System defaults.



  To set the options in the dropdown list:

  1. Log in to One Education Client and select Administration.
  2. Select System Admin | System Administration.
  3. Select the System Defaults tab.
  4. Scroll down and select the B2B_F_ parameters or search using the Filter option.
  5. In the Value field, enter True or False:
     • True
       Shows as ticked in the dropdown list
     • False
       Shows as unticked in the dropdown list



• Integration Service
  • B2B Attainment
• Bases
  It is advised that Local Authorities untick the XML Transfer Base checkbox as manually imported files are now processed in One Education Client | B2B Student.

• v4 Client
  • Usernames and Passwords
  • Permissions
  • Scheduled TasksScheduled Tasks

    How to Set up Scheduled Tasks in v4 client

    As part of the regular maintenance of data imported from schools, a number of scheduled tasks can be setup and run to clear conflicts, delete files and clear cached data.

    1. Select Tools | Administration | Scheduled Task.
    2. Click the New button.
    3. Enter information as required.
    4. Click the Add button in the 02.Trigger panel.
       Select the day, time and frequency of when you wish this schedule task to run.
       A process will be run depending on the settings that have been defined in the System Defaults.
    5. Click the Add button in the 03. Actions panel.
       Select from the options below as required.
       • Clear ConflictsClear Conflicts

         To help resolve data conflicts, One displays incoming data that conflicts with data already in the database in the Manage Data Conflicts screen. Currently, if a user changes the data in One to match that of the incoming data but the conflict has not been resolved via the Manage Data Conflicts screen, then the data is still displayed as in conflict.

         A scheduled task can be created in One v4 client to clear these conflicts. After the schedule task has run, any other conflicts where the incoming data is different to the data held in One for the student will continue to display this information in the relevant tabs and will not be cleared.

         To set up the scheduled task:

         1. Select Tools | Administration | Scheduled Task.
         2. Click the New button.
         3. Enter information as required.
         4. In the 03. Actions panel, select B2B:Student Process for Clearing Conflicts from the Action drop down.

       • Delete FilesDelete Files

         When the data is transfered from the Wonde API via B2B Student there are no files created. However, the data that is transferred is stored as a 'virtual'  file in the One database. A scheduled task can be created in One v4 client to enable LAs to delete these files automatically.

         To set up the scheduled task:

         1. Select Tools | Administration | Scheduled Task.
         2. Click the New button.
         3. Enter information as required.
         4. In the 03. Actions panel, select the B2B:Student Process for Deleting Files option from the Action drop-down list

       • Clear Cached DataClear Cached Data

         When data is imported into One, it is stored in a cache table so that it can be compared to future data imports. This minimizes the amount of duplicated data held in the conflict screens so that the user only has one conflict to process and is not presented with numerous conflicts all of which are identical but from different imports. A scheduled task can be created in One v4 client to schedule cache flushes in order to refresh the data held for comparison.

         To set up the scheduled task:

         1. Select Tools | Administration | Scheduled Task.
         2. Click the New button.
         3. Enter information as required.
         4. In the 03. Actions panel, select the B2B:Student Process for Clearing Cache option from the Action drop-down list.

  • Alerts
  • B2B AttainmentB2B Attainment

    B2B Student enables you to transfer attainment information between schools and One in the local authority. Data is transferred using the B2B Student scheduled task functionality. The scheduled tasks specify which information is transferred from the school to the local authority and govern how and when the transfer will occur. Once transferred, attainment data can be imported into One for analysis, either automatically or manually, via the Pulse generic import functionality.

    Prerequisites

    Before transferring attainment data via B2B:Student, a One Administrator must complete a number of prerequisitesprerequisites.

    • SIMS at the Spring 2016 Release (7.168) or later
    • One at the Spring 2016 Release (3.59) or later
    • Schools have migrated  B2B:Student Phase 2
    • Schools have SIMS Services Manager installed and running
    • Pulse and B2B:Student v4 licence installed

    Before transferring attainment data via B2B:Student, a One Administrator must ensure that the following configuration steps are completed:

    • Assign the required permissions for importing data to a user group.
    • In CCSConfig | Integration Service | Application Server Settings, enter the URL of the application server and the details of a One user with the appropriate data import permissions.
    • In B2B Student | Setup | Defaults for Attainment Import, set the default import and suspense directories as required.
    • Ensure that the required users (including the network account) have read-write access to the import and suspense directories.
    • If required, configure an alert to fire when a school officer updates or changes a B2B scheduled task owned by the school (use the B2B Attainment import task altered trigger).

    v4 client

    In order to transfer attainment data from schools to One via B2B Student, aspect hierarchies must first be createdcreated in the One v4 Client via Focus | Aspect Management | Aspect Hierarchy. Any hierchies in the v4 Client are visible when creating the scheduled task that transfers the data. To help you to locate the hierarchies when creating the task, consider adding “B2B” or another appropriate prefix to hierarchy names that will be transferred via B2B Student.

    When creating aspect hierarchies and scheduled tasks, you should be aware that file size does have an impact on the speed at which results are processed. The following table can be used as a guide. The results are based on performance tests run on a system dedicated to these imports and which meets the OTRA specification for the One Spring 2016 release.

    Actual performance in your One environment depends on the local, network connectivity, current load, and the  specification of the mid-tier and Oracle Database servers.

    Careful selection of the aspects in hierarchies can improve system performance. When an aspect is used across many year groups, you might consider multiple schedules spread across the NCYs and timing the imports for less busy periods. For example, creating separate scheduled tasks for collecting EYFSP, Phonics, KS1 and KS2 results from a large Primary school and  automatically importing the data overnight, will process  the results more quickly than the same data collected in a single file during working hours.

    1. Select Focus | Aspect Management | Aspect Hierarchy.
    2. Choose from the following options:
       • Click New to set up a new aspect hierarchy.
         Enter information as required.
       • Click Search to search for the required aspect hierarchy.
         Enter B2B in the Hierarchy Name field to filter the list.
         Select the required aspect hierarchy and amend information as required.



    One Education Client

    After creating the required aspect hierarchies, you must create the scheduled tasks to transfer the data from schools. Creating the scheduled task is similar to creating any other B2B scheduled task. Attainment data file sizes cannot exceed 2MB. Once configured, attainment scheduled tasks behave like any other B2B Student scheduled task. Additionally, schools can create and control attainment scheduled tasks via the schools portal, just like other B2B Student scheduled tasks.

    1. Select the Data Transfer area.
    2. Select the Scheduled Tasks page.
    3. Search for and select the required base(s).
    4. Click the Add New Task button to create a new scheduled task.
    5. In the Task Details tab, the following attainment specific options are available.
       To configure these options, you must select Attainment Data in the Data Filter Details section.

       After configuring the scheduled task for attainment, the details are transmitted to the schools installations at the base, just like other scheduled tasks. Data is then imported from schools in accordance with the options configured in the task.

    If data is transferred to One but fails to import, the file remains in the import folder. This folder should be checked periodically for files that have failed to import and the files should be deleted.

    The Local Authority must ensure the following:
    For security purposes, access to the import directories is tightly controlled.
    For data protection purposes, after all suspense has been resolved, all remaining files are deleted from the directories.

    An alert can be configured to fire when a school officer updates or changes one of their tasks (use the ‘B2B Attainment import task altered’ trigger).
